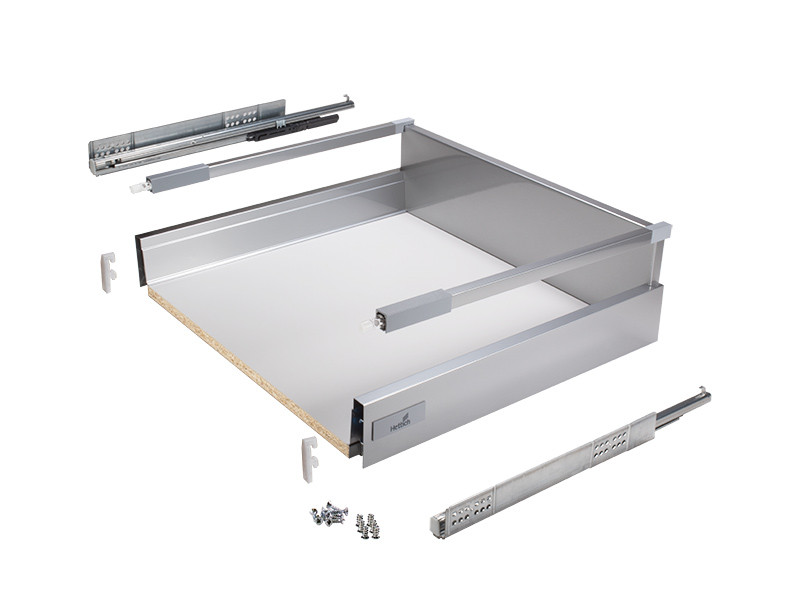

Take the hassle out of installation with the pre-assembled Hettich Atira deep drawer box, designed to help you create a more organised space in your kitchen, bathroom, or bedroom.
Renowned for their premium-quality drawers, Hettich delivers both durability and ease of use.
The 300mm drawer comes pre-assembled as standard - simply add your own fascia and attach the gallery rails. Soft-close runners ensure the drawer shuts gently and quietly every time.
This drawer is designed for a cabinet with an external width of 300mm. You will need an internal width of 264mm for the drawer to fit inside the cabinet.
A 176mm high back panel provides increased storage capacity, making it ideal for heavier or bulkier items such as pots, pans and tableware. The added height helps keep items secure and prevents them from tipping or falling out.
We also stock a wide range of Hettich Atira drawer systems in various sizes to suit different areas of the home, with a standard depth of 480mm - Click Here
Each drawer box is designed for cabinets with either 18mm or 15mm thick sides.
InnoTech Atira drawer system: assembly, installation and adjustment (04:22)
The InnoTech Atira drawer system by Hettich is full of character: Straight lines, clean contours, different colours and a variety of additional elements complemented by versatile interior organisation solutions form the perfect mix for more individuality. http://youtu.be/hsZhjk2vyUA
InnoTech Atira gives you a wealth of options
for individualised yet easily producible furniture line
solutions.
A large choice of side elements and rear panel widths, numerous colour options and a variety of runners – there‘s no limit to your creativity.
And upgrading couldn‘t be easier either. The cost and work involved in production, stockkeeping and logistics are reduced to a minimum.
This video explains how to assemble drawer side panels, bottoms and rear panels to become a drawer. The drawer side panels can either be fixed to the drawer bottom using the integrated knock-in clamps or screws.
Once the front panel adapters are fixed to the front panel via press-in or screw-on assembly, these are mounted to the drawer without using tools. The quick assembly also features simple disassembly by pushing the blue buttons on both sides of the InnoTech Atira drawer. Very useful e. g. for cleaning dirty drawers in every day kitchen use.
The assembly of InnoTech Atira railings, TopSides and DesignSides for pot-and-pan drawers is also very simple. For these components, quick disassembly is an interesting feature as it allows to change side elements anytime. As the main assembly positions for railing front connectors and DesignSide front connectors are identical, every pot-and-pan drawer can be customized to individual customer design preferences anytime and anywhere. Even exchanging side elements after installation is possible.
For cabinet installation, Quadro runners and mounting positions are identical with the classic InnoTech drawer system. InnoTech Atira drawers are also simply pushed onto the Quadro runner. Drawers and runners connect automatically.
In case the front panels are not perfectly in line: the sideway overlay can be quickly adjusted by using the screw on the right side of the drawer. The front panel height position can be adjustment via turn wheels on either side of the drawer. Adjustment screws, turn wheels and front panel release buttons should afterwards be covered by cover caps. The tilt of high front panels can be adjusted via turning the railing or adjustment screws in the DesignSide.
The InnoTech Atira drawer system was first presented at Interzum 2015. We are currently making it available in different markets. Please contact your Hettich contact person or Hettich distributor for latest information on products and availability in your country.
For more information, visit http://www.hettich.com
